NetPeppers SpicyONE QUAD Fiber Certifier
NetPeppers SpicyONE QUAD Fiber Certifier
NetPeppers SpicyONE QUAD Fiber Certifier
NetPeppers SpicyONE QUAD Fiber Certifier

NetPeppers SpicyONE QUAD Fiber Certifier

SKU:

SKU: NP-FIBER-SPI1QUADKIT

Category:

Fiber Certification

Hardware

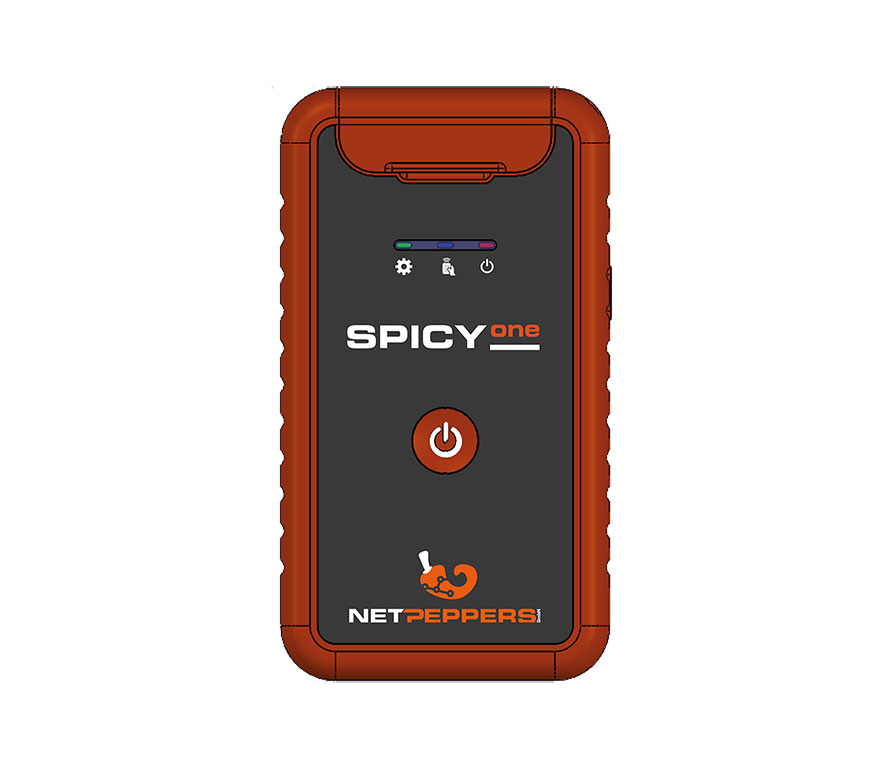

The NetPeppers SpicyONE QUAD is a TIER 1 app-controlled quad-wavelength fiber optic certifier covering both singlemode and multimode fiber in a single kit. Certify fiber optic cabling in accordance with ISO/IEC 11801/14763-3, DIN EN 50173-1, TIA-568.3 and IEEE 8802-3. Completely app-controlled via the free NP-Connect app on Android and iOS. Includes Encircled Flux (EF)-compliant light sources at 850/1300 nm (MM) and 1310/1550 nm (SM), all with stability of only +/- 0.02 dB per 15 min. Supports single, two and three jumper configurations, loopback and dual-ended measurements in simplex or duplex mode. Records attenuation, fiber length, propagation delay and polarity per measurement and compares immediately against stored limit values. Built-in VFL for optical troubleshooting.

Unite Price

POA

Price on Application — contact us for a quote

1

Description

The NetPeppers SpicyONE QUAD is a TIER 1 app-controlled quad-wavelength fiber optic certifier covering both singlemode and multimode fiber in a single kit. Certify fiber optic cabling in accordance with ISO/IEC 11801/14763-3, DIN EN 50173-1, TIA-568.3 and IEEE 8802-3. Completely app-controlled via the free NP-Connect app on Android and iOS. Includes Encircled Flux (EF)-compliant light sources at 850/1300 nm (MM) and 1310/1550 nm (SM), all with stability of only +/- 0.02 dB per 15 min. Supports single, two and three jumper configurations, loopback and dual-ended measurements in simplex or duplex mode. Records attenuation, fiber length, propagation delay and polarity per measurement and compares immediately against stored limit values. Built-in VFL for optical troubleshooting.

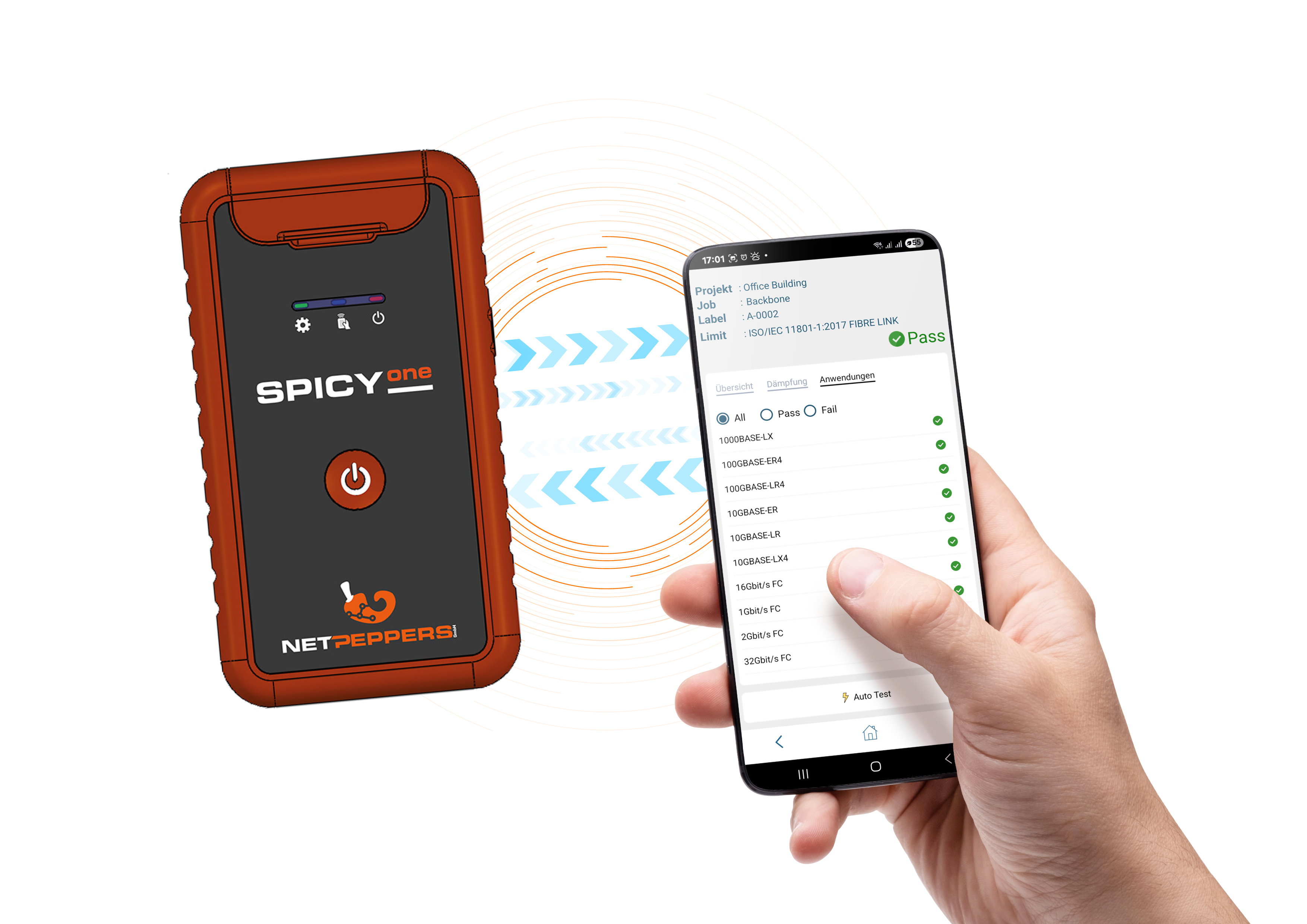

App-controlled via free NP-Connect app (Android 11+ / iOS 13+): manage projects, user rights, test reports and PDF exports. World-first fully app-controlled fiber certifier.

Quad-wavelength coverage: EF-compliant MM light sources at 850 and 1300 nm plus SM light sources at 1310 and 1550 nm — all with stability of +/- 0.02 dB per 15 min

Certifies to ISO/IEC 11801/14763-3, DIN EN 50173-1, TIA-568.3 and application standards per IEEE 8802-3

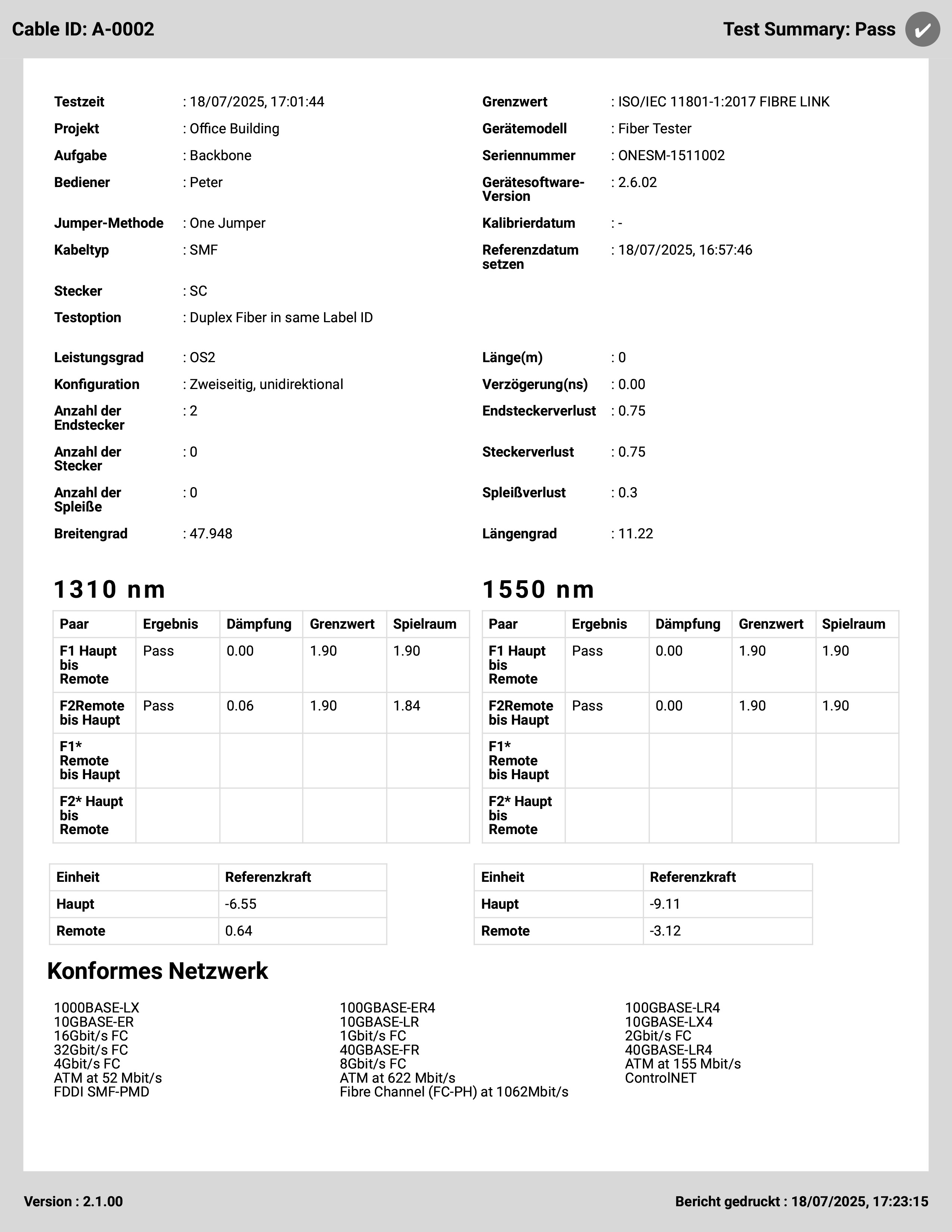

Supports single, two and three jumper referencing, loopback and dual-ended measurements in simplex or duplex mode. Records attenuation, length, propagation delay and polarity per measurement.

Built-in VFL for optical troubleshooting. USB-C rechargeable with Bluetooth connectivity.
