NetPeppers QuickSplice Splice Workstation
SKU:
SKU: NP-FIBER-QUICKSPLICE
Category:
Components
Hardware
Complete mobile fiber optic splice workstation with steplessly adjustable aluminium tripod (57-215 cm) and reinforced ABS work platform. Weighs only 2.8 kg combined. Compatible with major fusion splicer brands via included Type A, B and C mounting screws. Usable on tripod or with shoulder strap.
Unite Price
POA
Price on Application — contact us for a quote
1
Description
The NetPeppers QuickSplice is a complete mobile splice workstation for fast assembly and disassembly in the field. The lightweight aluminium tripod is steplessly adjustable from 57 cm to 215 cm, enabling ergonomic work at floor level, seated, standing or on a ladder. The reinforced ABS work platform features 4 strong magnets, 2 magnetic screw mounts and a hanging tool bag. Compatible with fusion splicers from NetPeppers, Fujikura, Sumitomo, Fiber Fox and others via included Type A, B and C mounting screws. Total combined weight of platform and tripod is only 2.8 kg.

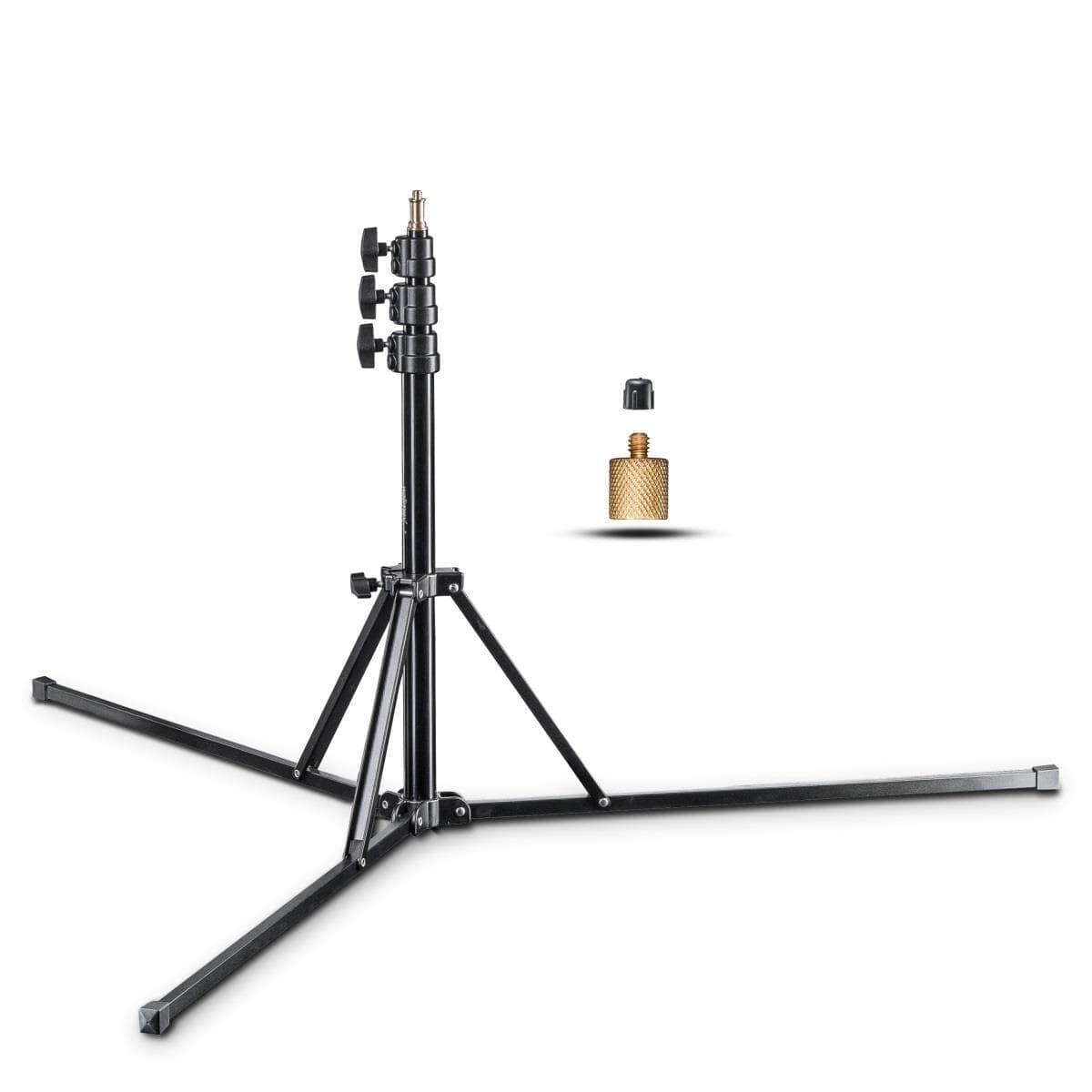

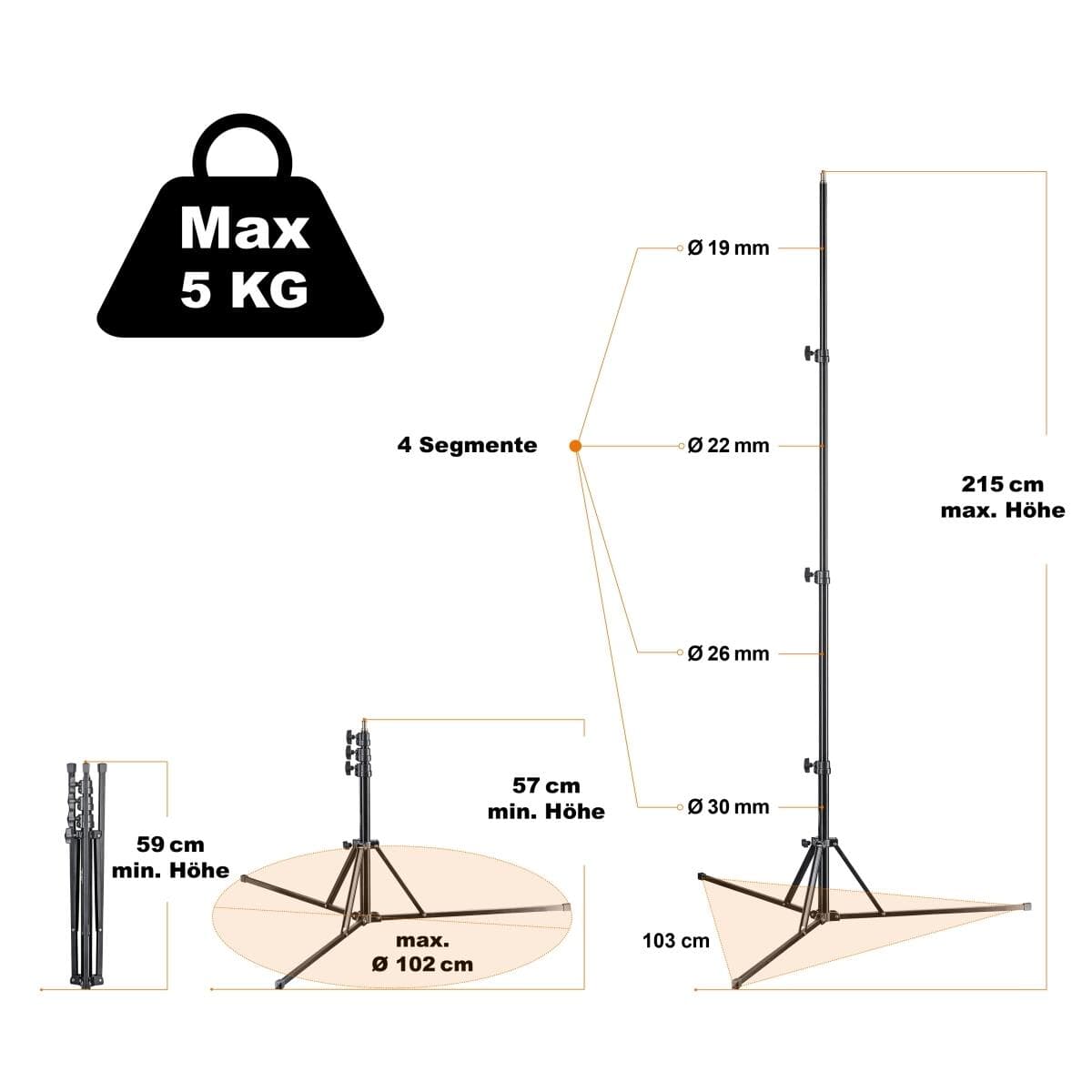

Full Flexibility: Tripod steplessly adjustable from 57 cm to 215 cm for seated, standing, ladder or floor-level splicing. Legs lower flush to floor with no tripping hazard.
Compact and Lightweight: Platform and tripod combined weigh only 2.8 kg with a transport length of 59 cm — easy to handle in confined spaces.
Maximum Compatibility: Compatible with fusion splicers from NetPeppers, Fujikura, Sumitomo and Fiber Fox via included Type A, B and C mounting screws. 3/8 and 1/4 inch threaded screw connection.

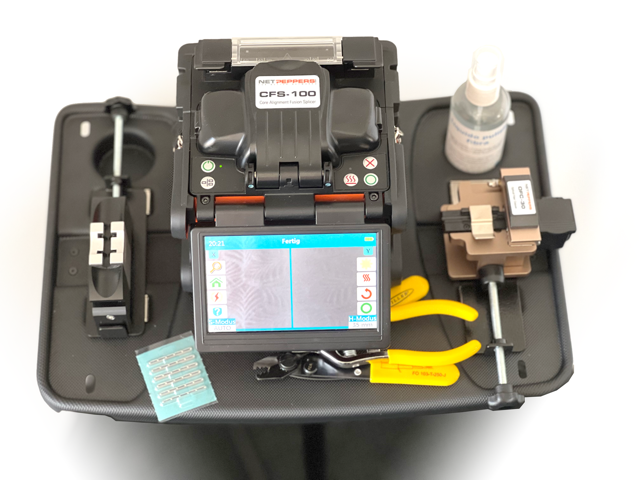

4 magnets and 2 magnetic screw mounts keep tools and instruments secured. Hanging tool bag with tool slots included.
Worktop usable on tripod or with shoulder strap. Includes QuickSplice workbench, belt hooking system, shoulder strap, tripod, tool holster, cleaver support and mounting screws.
