NetPeppers OPM200 Pocket Power Meter
SKU:
SKU: NP-FIBER-OPM200
Category:
Fiber Inspection & Cleaning
Hardware
4-in-1 pocket power meter combining an optical power meter (9 wavelengths, -70 to +6 dBm), integrated VFL at 650 nm, RJ45 copper cable tester up to 300 m, and LED flashlight. Backlit monochrome LCD, 60-result memory, USB-C rechargeable. Weighs 135 g.
Unite Price
POA
Price on Application — contact us for a quote
1
Description

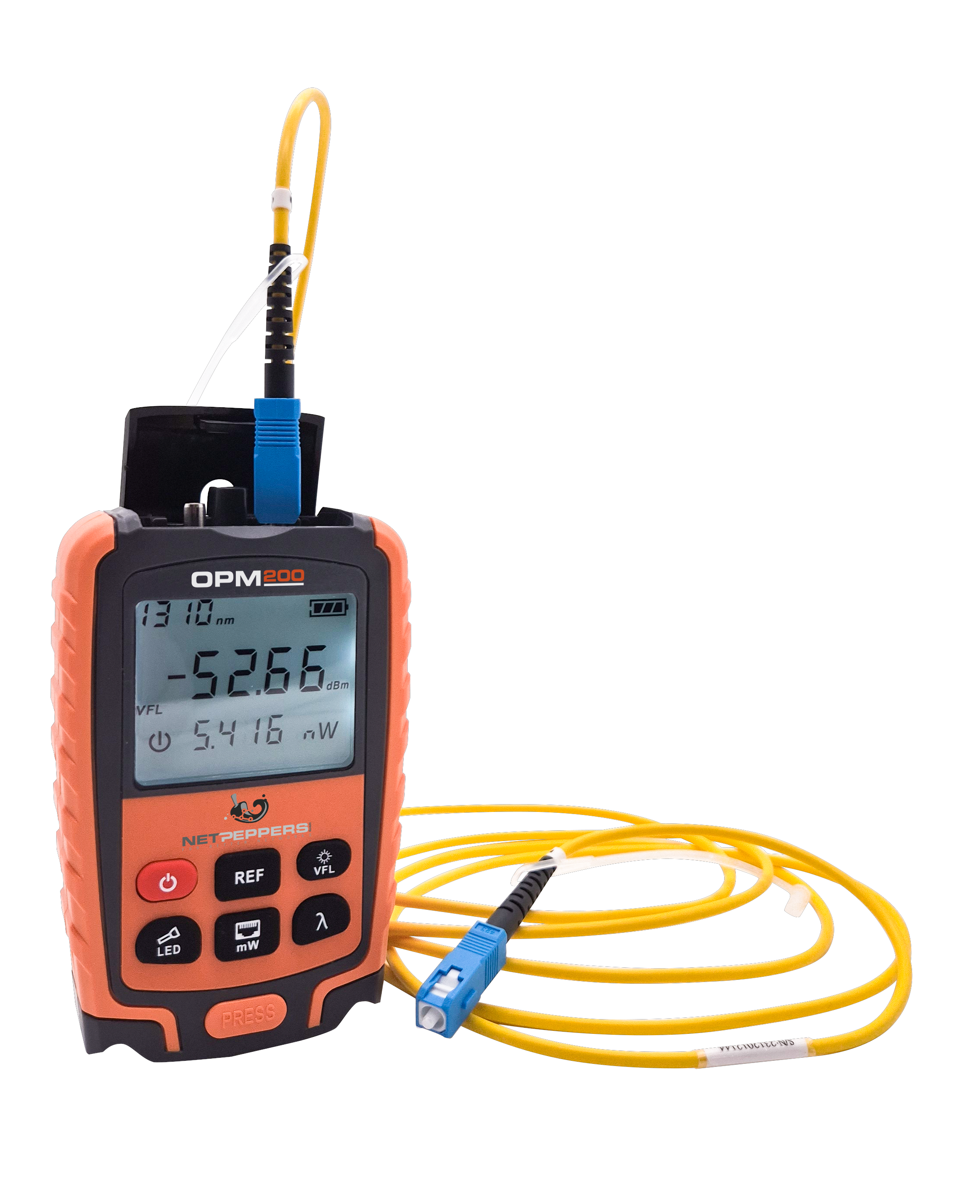

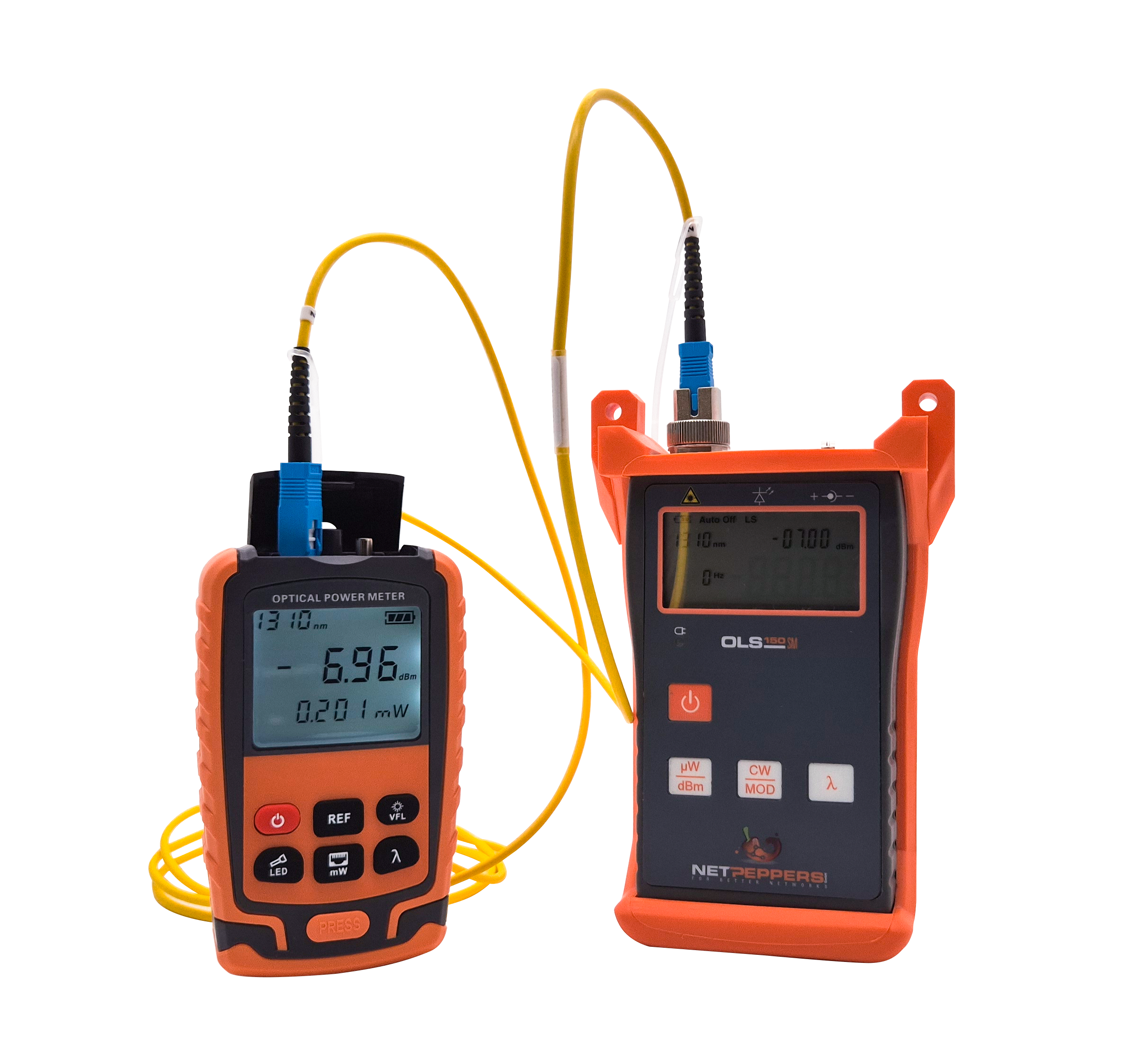

The NetPeppers OPM200 is a 4-in-1 pocket power meter for fiber installers and IT administrators. It combines a fiber optic optical power meter with memory, an integrated visible fault locator (VFL), an RJ45 copper cable tester and a white LED flashlight in a single compact device. Supports 9 calibrated wavelengths from 850 to 1625 nm on both singlemode and multimode fiber. Measuring range -70 to +6 dBm with InGaAs sensor and 0.01 dB resolution. Stores up to 60 measurement results. USB-C rechargeable Li-Ion battery. Compatible with ST/FC/SC/E2000 (2.5 mm) and LC (1.25 mm via adapter).
4-in-1 function: optical power meter with memory, integrated VFL (650 nm, laser class 2), RJ45 copper cable tester and white LED flashlight in one compact device
9 supported wavelengths: 850, 980, 1270, 1300, 1310, 1490, 1550, 1577 and 1625 nm on both singlemode and multimode fiber. Measuring range -70 to +6 dBm, InGaAs sensor, 0.01 dB resolution, accuracy +/- 5%

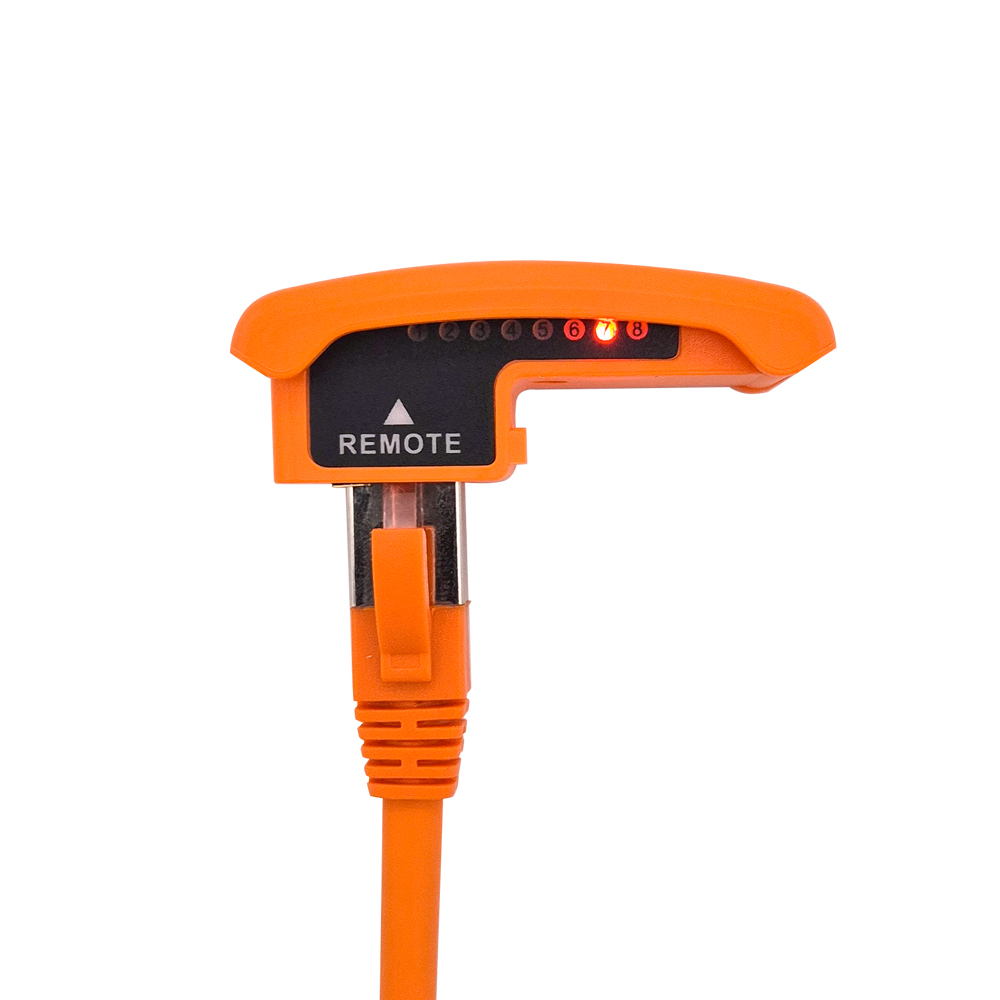

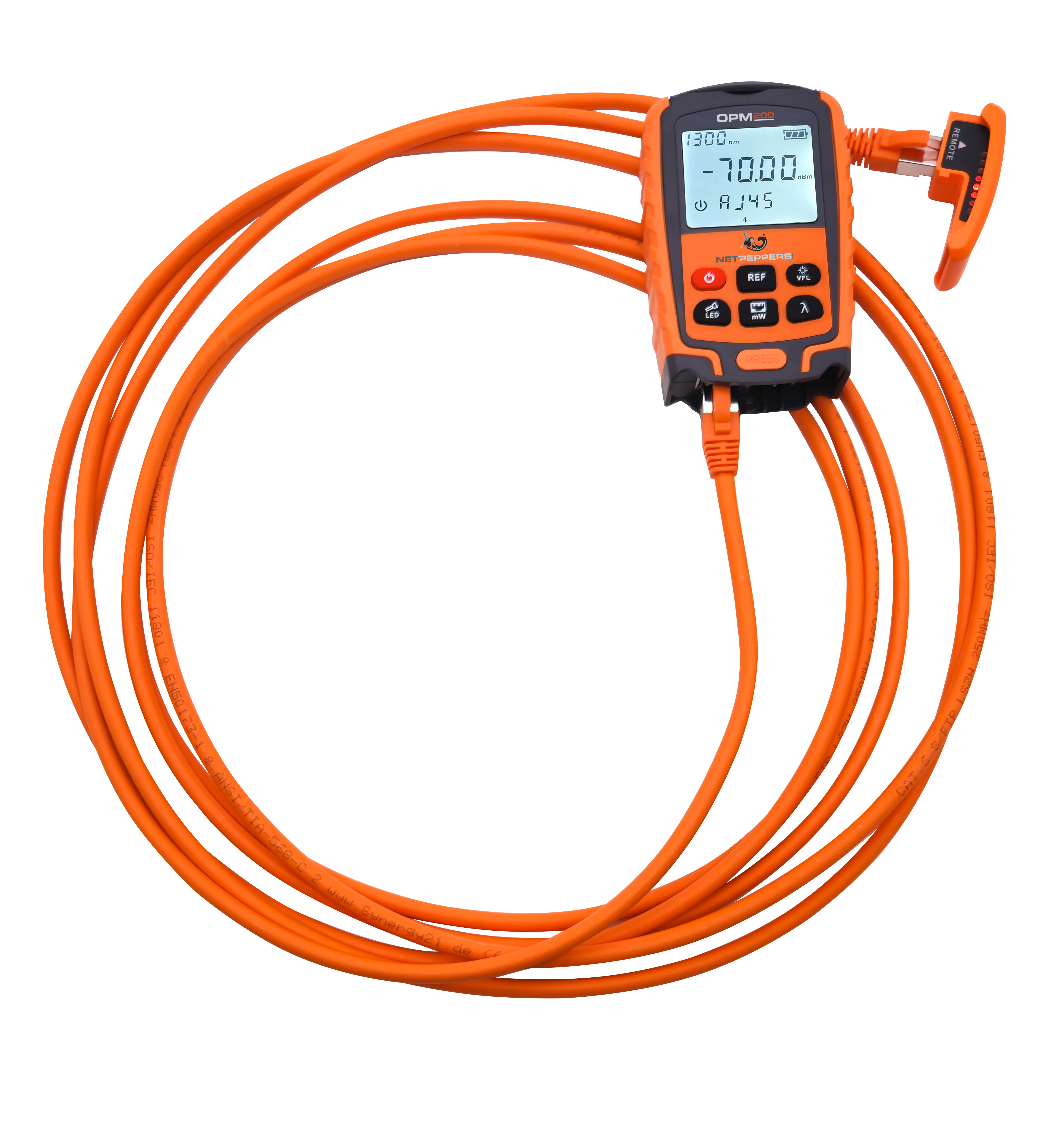

RJ45 copper cable test for continuity, short circuit and reversed wires with 8 LEDs. Maximum supported cable length 300 m.
Memory for up to 60 measurement results (ring memory). Backlit monochrome LCD with auto-off after 10 min.
2.5 mm universal jack (ST/FC/SC/E2000) and 1.25 mm LC via adapter. UPC and APC connector types supported. USB-C rechargeable 700 mAh Li-Ion battery.
