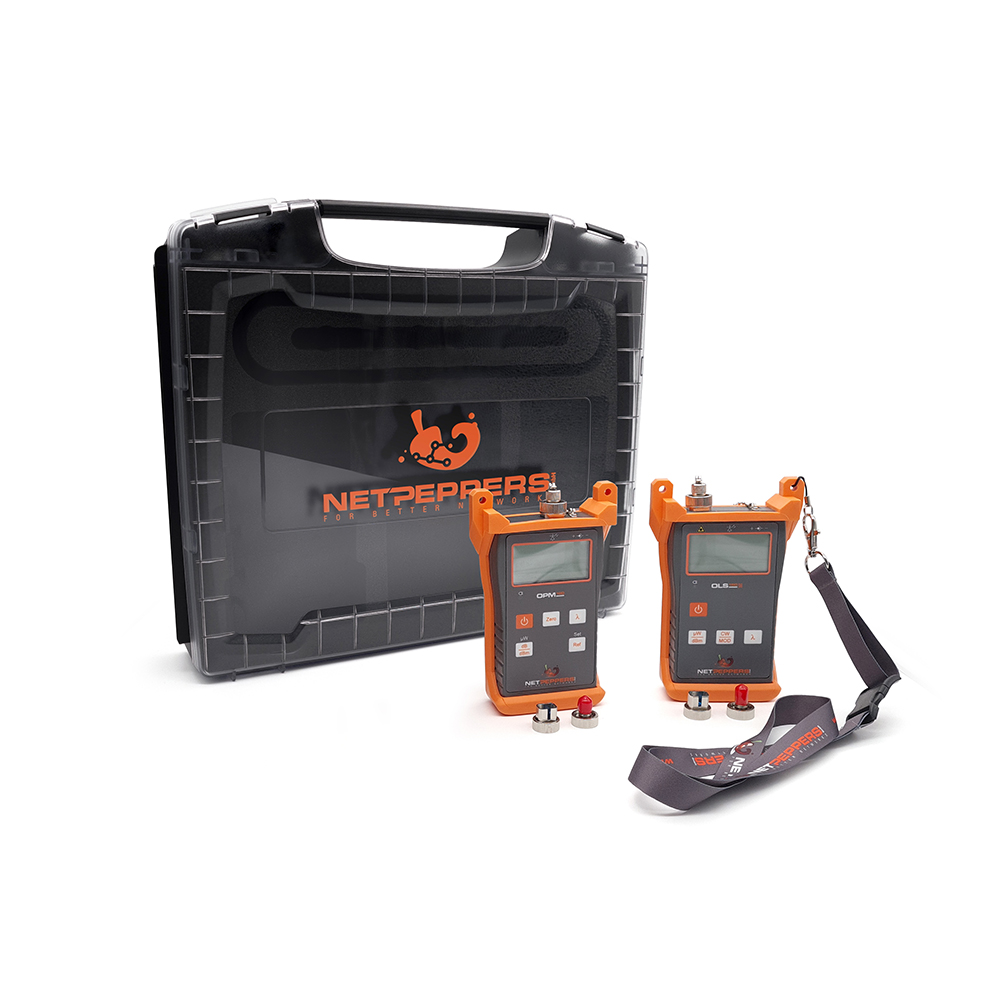

NetPeppers OLT100 MM Fiber Attenuation Kit
SKU:
SKU: NP-OLT-MM
Category:
OTDR & OLS
Hardware
Multimode fiber attenuation kit pairing the OPM100 power meter with the OLS150MM light source for insertion loss testing at 850 and 1300 nm.
Unite Price
POA
Price on Application — contact us for a quote
1
Description
The NetPeppers OLT100 MM Kit is a cost-effective fiber attenuation measurement kit for multimode fiber links. It combines the OPM100 optical power meter with the OLS150MM stabilized light source for standard-compliant insertion loss testing at 850 nm and 1300 nm. Designed for fast and reliable attenuation measurement in demanding environments using the 1 or 2 jumper reference method. Both instruments feature FC/PC connectors interchangeable with SC and ST and are powered by a 9V alkaline battery or optional external adapter.
Measures insertion loss on multimode fiber links at 850 nm and 1300 nm
Includes OPM100 optical power meter and OLS150MM stabilized light source
FC/PC connectors interchangeable with SC and ST on both instruments
Powered by 9V alkaline battery or optional external 9VDC adapter
Suitable for post-installation and in-service multimode fiber link verification
