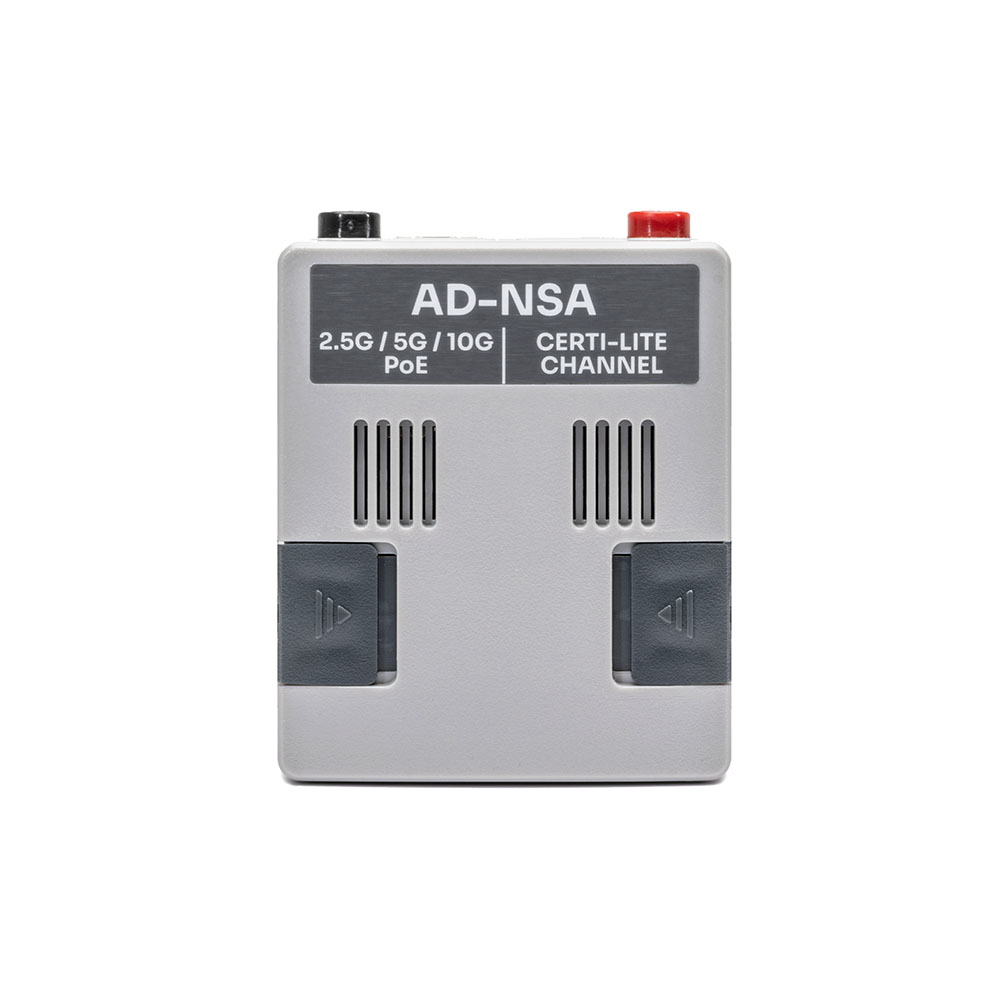

AEM AD-NSA Certi-Lite Test Adapter (Single)
SKU:
SKU: AEM-AD-NSA
Category:
Copper Ethernet Testing
Accessories
The AEM AD-NSA single test adapter enables Certi-Lite qualification of twisted-pair copper cabling on the AEM NSA in accordance with ANSI/TIA-1152-A up to CAT6A including specification of the suitable transmission standard up to 10 Gbit/s. Also measures PoE parameters such as PSE type and DP class up to 802.3bt (PoE++) and UPoE. Includes a finely adjustable PoE load test and multi-gig speed validation at 1/2.5/5/10 GBASE-T.
Unite Price
POA
Price on Application — contact us for a quote
1
Description
The AEM AD-NSA single test adapter enables Certi-Lite qualification of twisted-pair copper cabling on the AEM NSA in accordance with ANSI/TIA-1152-A up to CAT6A including specification of the suitable transmission standard up to 10 Gbit/s. Also measures PoE parameters such as PSE type and DP class up to 802.3bt (PoE++) and UPoE. Includes a finely adjustable PoE load test and multi-gig speed validation at 1/2.5/5/10 GBASE-T.
Certi-Lite copper qualification up to CAT6A per ANSI/TIA-1152-A
Supports transmission standard specification up to 10 Gbit/s
PoE parameter testing up to 802.3bt (PoE++) and UPoE
Adjustable PoE load test with SNR and signal power monitoring
Multi-gig speed validation at 1/2.5/5/10 GBASE-T
